Post Bed & Shoe Stitchers



Artisan  5110 / 5120 Post Bed & Shoe Stitching Machine

5110 Single Needle  – $1,649.00

5120 Double Needle – $2,075.00

Roller Presser Foot with Drop Feed, Feed Dog, 7″ Tall Post-Bed Lockstitch Sewing Machine using standard size “G” Bobbins and Rotating Hooks, Dial type stitch length regulator with Reverse, manual lubrication and sews up to 532” thickness.

Model 5120 is a double-needle version with a 18” gauge. The Complete sewing machine from Artisan® includes our exclusive ACF-625 Electronic A.C. Servo Motor Stand Drive Unit with adjustable “T” style steel legs, an 24 LED low voltage gooseneck lamp, drawer, and accessories.


Recommended SCHMETZ brand Needle.
Fabrics: 135 x 5 Size(10 to 16)
Leather: 135 x 8
TRI Size (10 to 16)

icon  VIEW SPECS     icon  VIEW MANUAL



 4618 Series Post Bed & Shoe Stitching Machines



4618 Series – $2,111.00

Needle Feed Post Bed Lockstitch Sewing Machines with Gear Driven Top Roller Wheel Feed Pressers and Bottom Gear Driven Lower Roller Feed Wheels.

The models 4618, 4618R (Discontinued), and 4618C Heavy (Discontinued) use a standard size “G” Bobbin and Rotating Hooks.

The 4618-LBB is a newly designed Big “M” size Bobbin and Rotating Hook machine and the 4618C Heavy uses a “G” size bobbin. Both of these post bed machines were designed to stitch heavy or thick threads up to size z-207. An example would be the assembly of heavy-duty leather boots for forest firefighters, smokejumpers, or lumberjacks.

The 4618, and 4618 R (Discontinued) are intended for stitching normal leathers for both assembly and decorative stitching on fashion shoes and western-style boots. All models include a top-loading bobbin mechanism with a push-button stitch length regulator, semi-automatic lubrication and are built to withstand the rigors of production sewing. Our model 4618-R includes a Reverse Feed Mechanism, and sews up to 532” thickness. The 4618-2 is a double-needle version for standard size threads with up to a 2.4mm or 332” gauge.

Complete Artisan® Sewing Machine includes our exclusive 800 watts, 1.0 HP digital Electronic A.C. Servo Motor model ACF-625 and the Drive Unit stand has a USA manufactured laminated plywood tabletop with “T” style steel adjustable legs with heavy-duty locking caster wheels, an ADR-124, LED gooseneck lamp, an accessory drawer and accessories like extra Schmetz needles, bobbins, manuals, and a tool kit.

Recommended SCHMETZ brand Needles:
135 x 8 Size(10 to 23)





4618-2
Double-Needle Machine, up to 2.4mm Gauge (3/32″) – $2,877.00

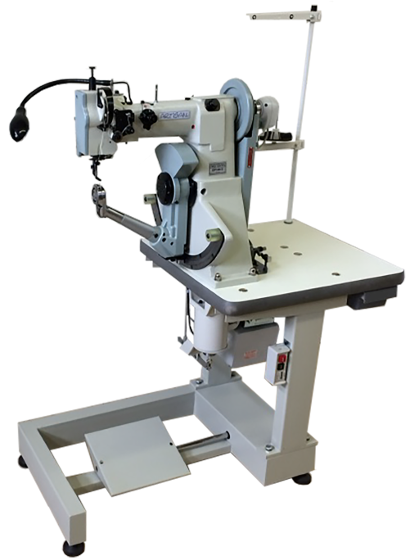

A-168/2 Post Bed Shoe Stitching Machine

A-168 Double Needle – $8,658.00

Side Wall Shoe Seaming Machine with Compound Needle Feed Walking Foot mechanism. Designed for stitching box soles to uppers on athletic type shoes and work boots. This machine has a 180° floating arm allowing the operator to easily stitch around the toe box then around the heel and back to the starting position.

The Machine is equipped with Ho Hsing i90 electronic servo motor with needle positioning and electric presser foot lifting mechanism and a very heavy duty special pedestal stand. 50mm Ø Large Bobbin Rotary Hook. Sews from 1.5 mm to 6 mm thick leather or man-made fabrics. Stitch Length from 3mm to 13 mm long. Needle CP x 5


Recommended SCHMETZ brand Needle. CP x 5

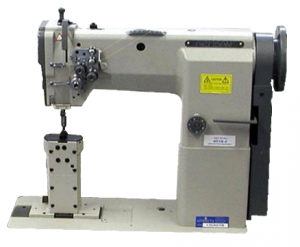

Artisan 4518 Single Needle Lockstitch Machine



4518 Single Needle – $1,900.00

4518 Double Needle – $2,048.00

Needle Feed Lockstitch Sewing Machines with a “G” size Bobbins and Rotating Hooks, (Top loading mechanism). 7″ Tall Post. Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication and sews up to 38” thickness. 4518-2 is a double-needle version with a 18” gauge.

The Complete sewing machine from Artisan® includes our exclusive ACF-625 Electronic A.C. Servo Motor Stand Drive Unit with adjustable “T” style steel legs, an 24 LED low voltage gooseneck lamp, drawer, and accessories.


Recommended SCHMETZ brand Needle.
Fabrics:135 x 5 Size(10 to 16). Leather: 135 x 8 Size(10 to 16)

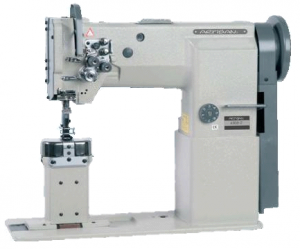

Artisan Compound Needle Feed, Walking Foot Machine


4608 Single Needle – $3,150.00

4608 Double Needle – $3,385.00


Compound Needle Feed, Walking Foot (Unison Feed), 7″ tall Post-Bed Lockstitch Sewing Machines with “G” size Bobbins and Rotating Hooks, Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication and sews up to 38” thickness. Model 4608 is available with a left or right side hook. 4608-2 is a double-needle version with a 18” gauge.


The Complete sewing machine fromartisan® includes our exclusive ACF-625 Electronic A.C. Servo Motor Stand Drive Unit with adjustable “T” style steel legs, an 24 LED low voltage gooseneck lamp, drawer, and accessories.

Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 23)
Leather: 135 x 16 TRI Size(14 to 23)

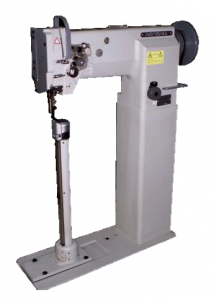

Artisan 6191-1 17" Tall Post-Bed, Compound Needle Feed, Walking Foot Machine



6191 Single Needle – $5,488.00

6191 Double Needle – Call For Price


17″ Tall Post-Bed, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Standard “G” size Bobbin and Rotating Hook, (Top loading mechanism). Features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication. May be ordered with the Rotating Hook to the Left or Right side of the needle. Double-Needle Version is available.

The Complete sewing machine from Artisan® includes our exclusive ACF-625 Electronic A.C. Servo Motor Stand Drive Unit with adjustable “T” style steel legs, an 24 LED low voltage gooseneck lamp, drawer, and accessories.

Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 24)

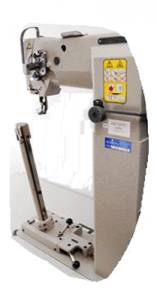

Artisan 6199 17" Tall Tilting Forward Post-Bed, Compound Needle Feed, Walking Foot Machine


6199 – $7,395.00

17″ Tall Tilting Forward Post-Bed, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Standard “G” size Bobbin and Rotating Hook. Features include a Safety Clutch mechanism, Dial operated stitch length regulator, Reverse feed lever, semi-automatic Lubrication.

The Complete sewing machine fromartisan® includes our exclusive ACF-625 Electronic A.C. Servo Motor Stand Drive Unit with adjustable “T” style steel legs, an 24 LED low voltage gooseneck lamp, drawer, and accessories.

Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size (14 to 24)
