335 B w/ ‘U’ Table System
$1,725.00 (Plus Shipping)
The Artisan® Model 335 B is a Cylinder Bed, Big “M” sized Bobbin, Medium/Heavy Duty Walking Foot, Compound Needle Feed, (Unison Feed) Lockstitch Sewing Machine with a Large Thread Capacity, Big Size, Rotating Hook Mechanism. Artisan® model 335 B series sewing machines include a lever-operated stitch length mechanism with a reverse feed regulator for back tacking and stitching in reverse.
Some additional features of the 335 B include a semi-automatic lubrication system, a synchronized binder mechanism (folder optional) and the machine sews thread from as small as size z-46 up to a large diameter size of z-207 in the needle with up to a maximum size of z-138 in the bobbin. Artisan® model 335 B machines sew a beautiful equal distant stitch length on all types of leathers or fabrics as light as a sheet or two of paper and up to just over 3⁄8” thick of leather or fabrics.
The complete sewing machine as shown in the photograph to the left includes our Artisan® exclusive ACF-625 Digital Electronic A.C. Servo Motor Drive System including adjustable “T” style steel legs with locking caster wheels. We selected a “U” style, USA manufactured laminated plywood tabletop for stitching inside purses, bags, and items with gussets or just about any style of small to medium weigh project. Our 24 LED magnetic gooseneck lamp, a storage drawer, and additional accessories like Schmetz brand needles, bobbins, a spool of high-performance thread, tools, some spare parts and operators manuals are included with each shipment.
Replacement spare parts are similar to the German manufactured PFAFF Model 335 series sewing machines. The Artisan® model 335 B is also available mounted on the Artisan® Ped-500 as shown below to the left. We manufacture an optional “Work Platform” which transforms the cylinder bed surface of the sewing machine into a flatbed surface converting the cylinder bed style into a flatbed style sewing machine. The “work platform is an option worth having as well as several additional and optional accessories such as a quality upper mounted flip up/flip down, adjustable roller edge guide along with various styles of different presser feet for sewing zippers, welting, piping, and a seam binding folder and additional attachments are also available from Artisan®
Optional 335 Roller Edge Guide: $75.00
Optional Work Platform: $100.00
Recommended SCHMETZ brand Needle
Fabrics: 135 x 17 Size(14 to 23)
Leather: 135 x 16 TRI Size(14 to 23)
335 B SAVR Space Saving Economical Pedestal
$1,535.00 (Plus Shipping)
The Artisan® Model 335 B Walking Foot Cylinder Bed, Compound Needle Feed, Lockstitch Sewing Machine head with a Big size “M” Bobbin and side loading Rotating Hook as the 335 B BT and 335 B series machines. A Lever operated stitch length regulator with Reverse Feed but with a HAND Operated Presser Foot lifting mechanism, not a foot-operated device, and a manual lubrication system.
335 B machines include a synchronized binder mechanism as other 335 series machines. The 335 B machine sews as light as a sheet of paper and up to a full 3⁄8” thickness of Leather, Fabrics, Canvas, Webbing, Technical Fabrics, and all Upholstery type fabrics. The cylinder bed walking foot machine is designed to sew threads from a lightweight size of z-46 up to medium-heavy thread size z-207 in the needle. Spare parts are interchangeable parts with Pfaff 335 models.
The Artisan® Model 335 B SAVR series Sewing Machine includes our exclusive model ACF-680, 1.1 hp High Torque Digital Servo Motor with an electronic, foot-operated, speed controller placed on the floor for complete speed control. The machine and motor system is operator controllable and stitches slowly, stitch by stitch and the sewing speed is also variable up to the sewing speed of your choosing.
Assembly is required. The economical Artisan® Model 335 B SAVR is available K/D for shipping purposes. Standard 1 year warranty.
Recommended SCHMETZ brand Needle
Fabrics: 135 x 17 Size(14 to 23).
Leather: 135 x 16 TRI Size(14 to 23)
Optional, Pre-Assembled SAVR Pedestal: $95.00
Optional, ADR-124 LED Magnetic Gooseneck Lamp: $21.00
Optional, Artisan® Lifetime Warranty Parts and Labor: $125.00
Optional, Flip-up, Flip down adjustable roller edge guide: $75.00
Additional Bobbin Case: $19.50
Additional Bobbins (10 pack): $18.00
Additional SCHMETZ Needle (10 pack): $4.40
335 B BT Transportable
$1,595.00 (Plus Shipping)
The Artisan® s-335B BT is a newly introduced model. The machine is designed as a tabletop, transportable stitching machine. The complete machine is portable and designed to place on top of a workshop bench, a kitchen table, or at a trade show, rodeo, or out in the boonies. It can even be plugged into the 12-volt system in your truck using an inverter or just about any 12-volt battery.
The triple feed, walking foot, cylinder bed machine is designed for sewers to assemble or do repairing of all types of leather, canvas, and webbing products. The 335 B series, big Bobbin machine is ideal for making bags, purses, chaps, chinks, holsters, knife sheaths, belts, watch bands, cell phone cases, day planners, book jackets, and all manner of products made of leather or upholstery type fabrics. Some features of the new machine are that one can sew as thin as a couple of sheets of paper up to almost a 1⁄2 inch of leather or fabrics using lightweight threads from size 33 up to very heavy thread, size 207. A flatbed work platform is easily added to convert the cylinder bed into a flat working surface.
Artisan® uses the industry’s most powerful 5.3 Nm torque, 1.1 hp Electronic Servo Motor producing 880 watts of power. The Artisan® ACF-680 motor system is extremely powerful and completely speed controllable. You can run the machine and stitch slowly, stitch by stitch, and variable up to a fast 1800 rpm. The machine is well made up to the highest standards with interchangeable parts and will perform for generations.
Optional BT Work Platform: $125.00
Recommended SCHMETZ brand Needle.
Fabrics: 135 x 17 Size(14 to 23).
Leather: 135 x 16 TRI Size(14 to 23)
TORO-3200 w/ “U” Table
$2,395.00 (Plus Shipping)
12 1⁄2” Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever-type stitch regulator with Reverse feed and a traditional style bobbin re-winder. The machine will sew up to 9⁄10” of leather with up to size 415 bonded thread.
The complete Artisan® sewing machine includes our exclusive 110 volts, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor with “U” Style Table, Adjustable “T” Style Steel Legs including four lockable caster wheels, an Artisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.
Recommended SCHMETZ brand Needle
Leather: 794 D Size(23 to 26)
Optional Work Platform: $100.00
TORO-3200 BT
$2,395.00 (Plus Shipping)
12 1⁄2” Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever-type stitch regulator with Reverse feed and a traditional style bobbin re-winder. The machine will sew up to 9⁄10” of leather with up to size 415 bonded thread.
The complete Artisan® sewing machine includes our exclusive 110 volts, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor with an Artisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.
Recommended SCHMETZ brand Needle
Leather: 794 D Size(23 to 26)
TORO-3200 w/ PED 500
$2,420.00 (Plus Shipping)
12 1⁄2” Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever-type stitch regulator with Reverse feed and a traditional style bobbin re-winder. The machine will sew up to 9⁄10” of leather with up to size 415 bonded thread.
The complete Artisan® sewing machine includes our exclusive 110 volts, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor with model EP Ped-500 Adjustable Pedestal Stand including four lockable caster wheels, an Artisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.
Recommended SCHMETZ brand Needle
Leather: 794 D Size(23 to 26)
Optional Work Platform: $100.00

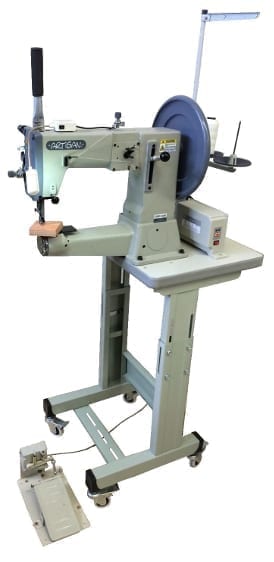

TORO-3200 w/ PED 520
$2,375.00 (Plus Shipping)
12 1⁄2” Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever-type stitch regulator with Reverse feed and a traditional style bobbin re-winder. The machine will sew up to 9⁄10” of leather with up to size 415 bonded thread.
The complete Artisan® sewing machine includes our exclusive 110 volts, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor with model Ped-520 Adjustable Pedestal Stand including four lockable caster wheels, an Artisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.
Recommended SCHMETZ brand Needle
Leather: 794 D Size(23 to 26)
Optional Work Platform: $100.00

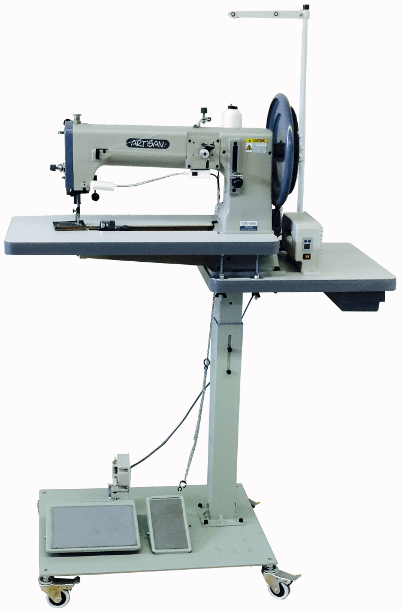

TORO-4000 R w/ PED 500
$2,635.00 (Plus Shipping)
16 1⁄2” Working Area, Compound Needle Feed, Walking Foot (Unison Feed) Lockstitch Sewing Machine with a Large Barrel Bobbin and Oscillating Shuttle system. Features include a Lever-type stitch length regulator with Reverse feed and a machine mounted bobbin re-winder. The TORO-4000 R will sew up to 7⁄8” of leather and sews bonded threads from size 138 up to size 346. Optional up to size 415 thread.
The 4000 R Stitcher is available with either an Artisan® EP Ped-500 Adjustable Pedestal Stand or our heavier duty Deluxe Ped-600 Adjustable Pedestal Stand. Both units include our exclusive 110 volts, 880 Watt, 1 HP, ACF-680 Electronic A.C. Servo Motor. Model EP Ped-500 Adjustable Pedestal Stand includes four lockable caster wheels, an Artisan® ADR-124, 24 LED low voltage gooseneck lamp, and accessories.
Recommended SCHMETZ brand Needle
Leather: 794 D Size(23 to 26)
Optional Work Platform: $100.00
Recommended SCHMETZ brand Needle
Fabrics: 794 Size(18 to 27)
